5.2 Devices

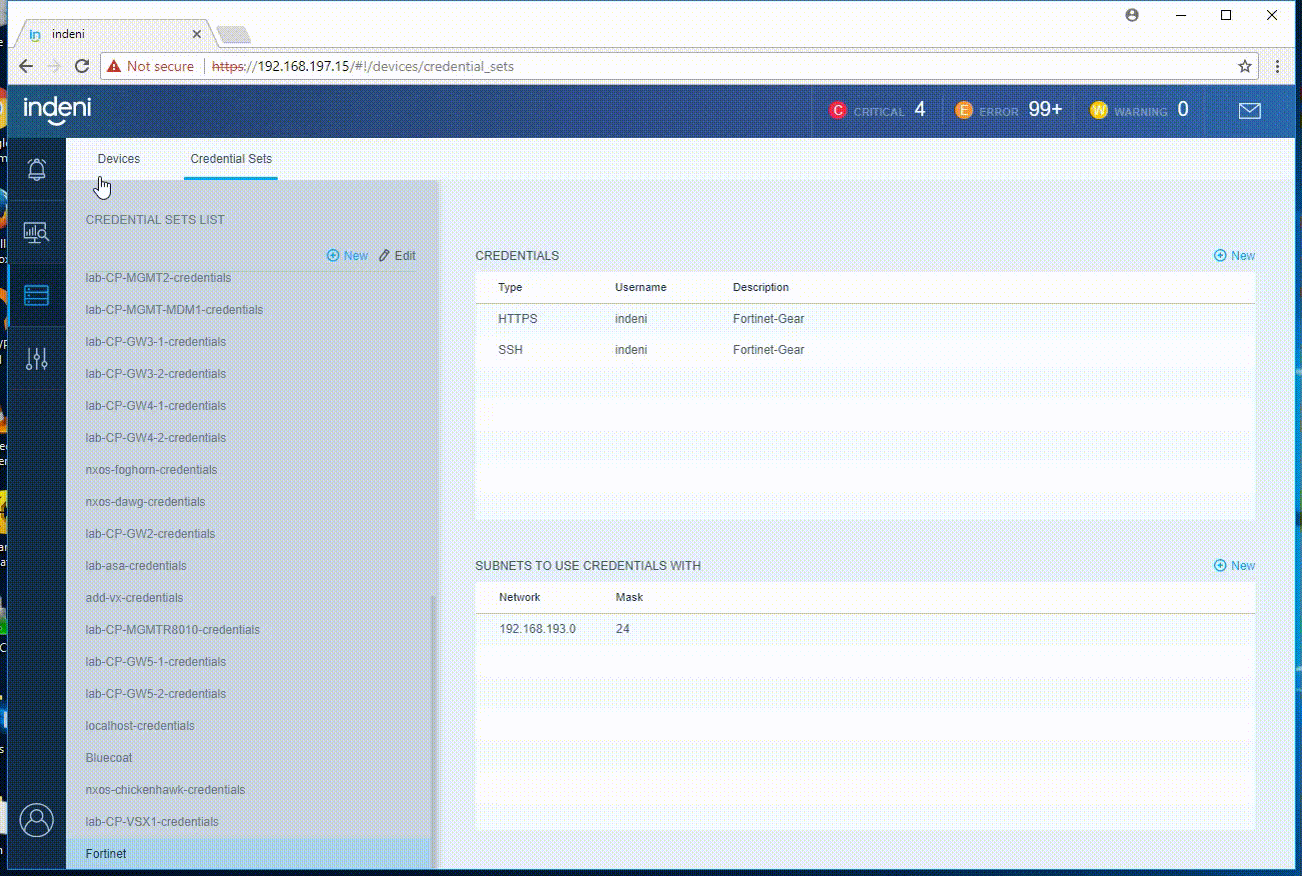

After you have added the Credential Set you are ready to add the device(s). Navigate back to the Devices tab and click on New.

Accept the Device Requirements and Effects by selecting Continue:

You will then land on a screen where you can add the device name and IP address. Please take note that you can add multiple devices by selecting New or by Importing a list.

You also have the ability to Add previously Known Devices.



You also have the ability to apply Labels to new devices before adding, letting you take advantage of the tuning you have already done. This means that you will not generate messages around all the Indeni Rules that exist, which means less noise for your team.



After you have added the Name, IP address and Labels (if applicable), click on Interrogate.

Please Note: You can only enter letters and digits. The name field is also space sensitive. If you notice here, I’ve not used letters and numbers, however, highlighting the area after the error, I see there’s an extra space.

After you click on Interrogate, it should reach out and connect to the device via the credential set you created for the device(s) subnet. If it fails, it is very important to read the message that was delivered back. It will hold the details that you need to remediate the issue.

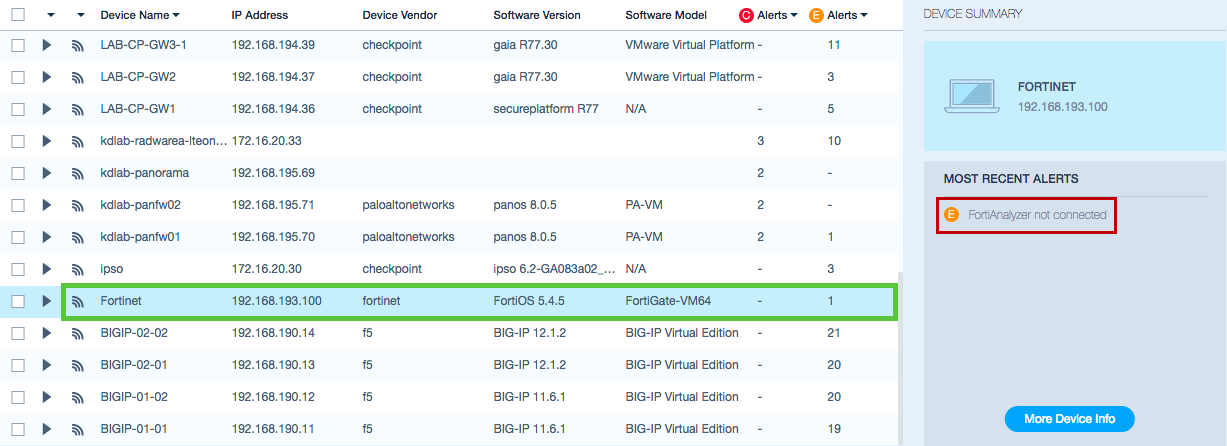

Following the steps suggested, SSH connection to the device as listed did not work. After taking another look at the credential sets, and other testing, it is realized that the IP address of the device is incorrect. After correcting the IP and clicking interrogate again we see a successful add, indicated by the Green Signal icon.



Now that Interrogation is done, you need to Save the device to add it to dashboard. After it is saved, you might need to wait a few moments for Indeni to run all through all the Rules that can be applied to the added device. Once it does, you will be presented with issues and device details.


Live Example
